Description

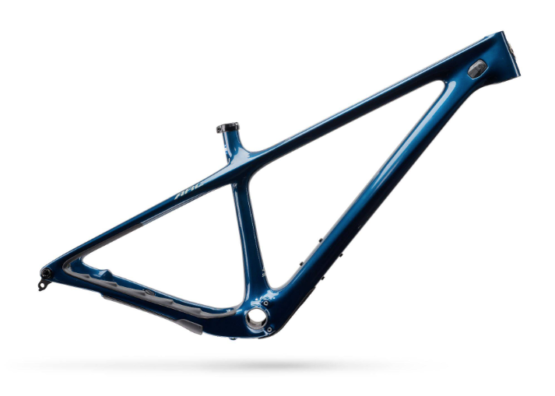

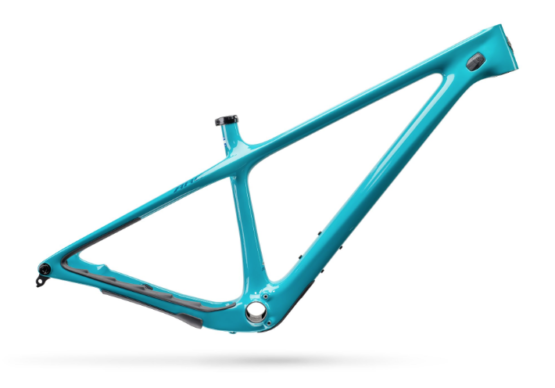

Yeti ARC 29″ T-Series- frame only
“The ARC is back. Conjuring up all the nostalgia, hoots and holler’s from yesteryear. It’s your instant-feedback steed for any trail. Show it your singletrack, pump track and your bike pack route too. It’s got history to live up to and new history to make. And it’s already impatient.”
The ARC is your instant-feedback steed for any trail. Show it your singletrack and your pump track and your bikepack route too. It’s got history to live up to and new history to make. An it’s already impatient. The ARC lives on.
Features
- 67-degree head angle.
- 76-degree seat tube angle.
- Modern geometry.
- Boost spacing.
- SRAM Universal Derailleur Hanger.
- Raised chainstay guard to prevent excess chain slap noise.
- Internal cable routing.
- Integrated headset.
- Integrated ISCG 05 tabs.
- Short fork offset design.
- Two mounts for water bottles.
- 1 in frame.
- Tyre clearance for 2.6″.
GEOMETRY
All measurements are shown in millimetres.
| SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 380.0 | 410.0 | 450.0 | 495.0 |
| B | TOP TUBE LENGTH [EFFECTIVE] | 577.4 | 604.3 | 626.0 | 653.4 |
| C | HEAD TUBE ANGLE | 67.0 | 67.0 | 67.0 | 67.0 |
| D | SEAT TUBE ANGLE [EFFECTIVE] | 76.0 | 76.0 | 76.0 | 76.0 |
| E | CHAINSTAY LENGTH | 433.0 | 433.0 | 433.0 | 433.0 |
| F | WHEELBASE | 1143.5 | 1171.5 | 1194.2 | 1223.1 |
| G | BB HEIGHT [ESTIMATED] | 310.0 | 310.0 | 310.0 | 310.0 |
| H | STANDOVER | 723.0 | 722.0 | 720.0 | 720.0 |
| I | HEAD TUBE LENGTH | 95.0 | 102.9 | 109.6 | 119.6 |
| J | FORK [AXLE-TO-CROWN] | 543.7 | 543.7 | 543.7 | 543.7 |
| K | FORK [OFFSET] | 44.0 | 44.0 | 44.0 | 44.0 |
| L | STACK | 631.7 | 638.9 | 645.1 | 654.3 |
| M | REACH | 420.0 | 445.0 | 465.0 | 490.0 |
| N | FRONT CENTRE | 710.5 | 738.5 | 761.2 | 790.1 |
Ask about our custom build packages!
Additional information
| Frame Size | Small, Medium, Large, Extra Large |
|---|---|
| Colour | Cobalt, Redrum, Turquoise |
